Pistons

since 1952

2-Strokes
Gravity Cast Pistons

Lightweight design. Reduced expansion.

Complex architecture.



High % Sylicon Aluminun Alloys

18% Si aluminum alloys for gravity casting with reduced expansion coefficient.

21% Si aluminum alloy for special applications.

Gravity casting

 The best technology for sophisticated inner and outer shapes.

Diameter range

32 - 95 mm

Treatments and coatings

Low friction Molybdenum disulphide coating.

Ceramic head.

Semi-hard oxidation on head rings grooves.

Applications

Motorcycles, Vintage bikes and racing, Gardening&Forestry engines (chainsaws, brushcutters), Construction engines (cut off saws, concrete saws), racing and power engines (Go-karts, Off-road bikes), Flying engines and several custom applications designed and build on customers' purposes.

Odoo • Image and Text

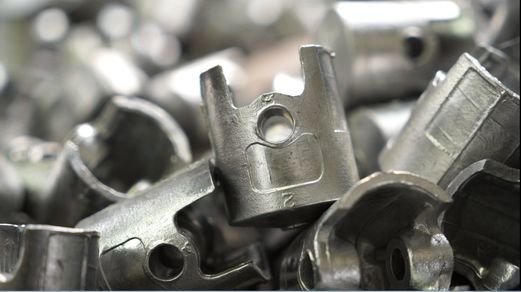

Excellent casting quality

Excellent casting surface quality allows reduction of machining additions and thus reduces/eliminates the machining.

The high rate of cooling during the metal solidification in a permanent metal mould delivers increased alloy thickness and fine-grained structure of the casting, and excellent mechanical properties as a result.

High dimensional and shape stability and precision of castings are guaranteed.

The material consumption is significantly lower compared to conventional casting methods.

Permanent mold casting is suitable for both small and large series production.

 Anti-rotation pin special fixing

Special fixing of the ring’s anti-rotation pin by means of a special machine able to check drilling force and pin’s fixing on pistons one by one.

Pinholes lubrication pockets

Obtained by CNC machining for best lubrication properties for racing pistons - evolution of the old lubrication holes.

Improved Casting

The material consumption is significantly lower compared to conventional casting methods

Customized profiling

Thanks to our CNC special lathes, piston profiling can be customized upon client’s needs and technical specifications.

2-Strokes
Forged Pistons

Tough made for long endurance applications.

Simple architecture - Long life.


Materials

13% Sylicon Aluminium alloy 4032

Copper alloy 2618/A


Forging

For forged rough parts supply we rely on trusted and experienced Italian partners, focusing on long-term relations and technical cooperation to gain the best results in terms of service and performance.

Diameter range

50 - 95 mm

Treatments and coatings

Low friction Molybdenum disulphide coating.

Ceramic head.

Semi-hard oxidation on head rings grooves.

Applications

Racing bikes, Dirt bikes.



 Anti-rotation pin special fixing

Special fixing of the ring’s anti-rotation pin by means of a special machine able to check drilling force and pin’s fixing on pistons one by one.

Pinholes lubrication pockets

Obtained by CNC machining for best lubrication properties for racing pistons - evolution of the old lubrication holes.

Customized profiling

Thanks to our CNC special lathes, piston profiling can be customized upon client’s needs and technical specifications.

4-Strokes
Gravity Cast Pistons

A good choice for non-racing engines.

Lower emissions.

Right price.



Gravity casting

  The best technology for sophisticated inner and outer shapes.

Diameter range

32 - 100 mm

Treatments and coatings

 Molybdenum disolphure spray coating.

Semi-hard oxidation on head rings grooves.

Applications

Street bikes

Low Oil consumption

 Thanks to the right match of profile design, tolerances and ring sets.

Improved Casting

The material consumption is significantly lower compared to conventional casting methods

Fuel economy

Best design and architecture for low emissions.

4-Strokes

Forged Pistons

High performance. High engine pressures. High compression ratio.

Materials

13% Sylicon Aluminium alloy 4032

Copper alloy 2618/A

Forging

For forged rough parts supply we rely on trusted and experienced Italian partners, focusing on long-term relations and technical cooperation to gain the best results in terms of service and performance.

Diameter range

50 - 110 mm

Treatments and coatings

Low friction Molybdenum disulphide coating.

Semi-hard oxidation on head rings grooves.

Bridged box

Bridged box (T-bridge) featuring special ribs to give the pistons a lighter weight and higher strength without compromising piston’s architecture and geometries


Customized profiling

Thanks to our CNC special lathes, piston profiling can be customized upon client’s needs and technical specifications.

Perfect coupling

3D Vision system for cylinder head reverse engineering for the study of piston's head shaping for the gas flow tuning and increased compression.




Compressors

Gravity cast pistons

Outstanding quality at a right price.

Endurance guaranteed.

Aluminum alloys

Aluminium alloy 12% Si  AlSi 12MgCuNi-P


Gravity casting

The best technology for sophisticated inner and outer shapes.

Diameter range

32 - 130 mm

Treatments and coatings

Low friction Molybdenum disulphide coating.

Semi-hard oxidation on piston skirts


Applications

Pistons and rings for all compressors: sanding systems for trains, high pressure, breathing air (for scuba diving), firefighting,  technical  gasses, CNG, dental compressors.  Compressors on jackhammers.

High quality rings by Caber

Perfectly designed rings to guarantee gas-tight,  low oil consumption and prevent blow-by.

Long endurance piston rings.








Customized pistons

design

Designed upon clients needs.

Odoo • Image and Text

We develop customized solutions.

As well as the wide selection of aftermarket parts and OEM production, Meteor can develop exclusive pistons upon customers’ specifications for many applications, thanks to a flexible protocol that combines mass production with small quantity batches.

From costs and factibility analysis, through prototyping, 3D engineering, FEM analysis, and mold construction, the entire process is developed in house until the end-product delivery.

Thanks to our 70 years of experience we can provide with technical support, management and consulting in order to reach our customers specifications.

1500+ Pistons types in our production range!

We have everything you need: pistons, segments, cylinders, pins
