CKM3076 PISTON & CYLINDER HEAD WITH INSERT 12° HP KTM KTM SX-EXC85 2003 -2025 / HUSQVARNA TC85 2014-2025 / GAS GAS MC85 2021-2025 D. 47
Mold technology:
Gravity cast
Nominal Diameter [mm]:
47
Compression [mm]:
23,80
Total height [mm]:
51,50
Head type:
12° conical head
Head height [mm]:
0,70
Item total dimensions L x L x H [mm]:
230 x 190 x 95
Additional features:
Includes piston P3076 with chrome steel piston rings, pin, pin-retaining circlips, dedicated 12° insert, cylinder head and titanium screws. All components are replaceable, interchangeable, and available for separate purchase
Notes:
Use only Meteor Piston piston, inserts and cylinder heads included in the kit. This kit is not compatible with alternative components.

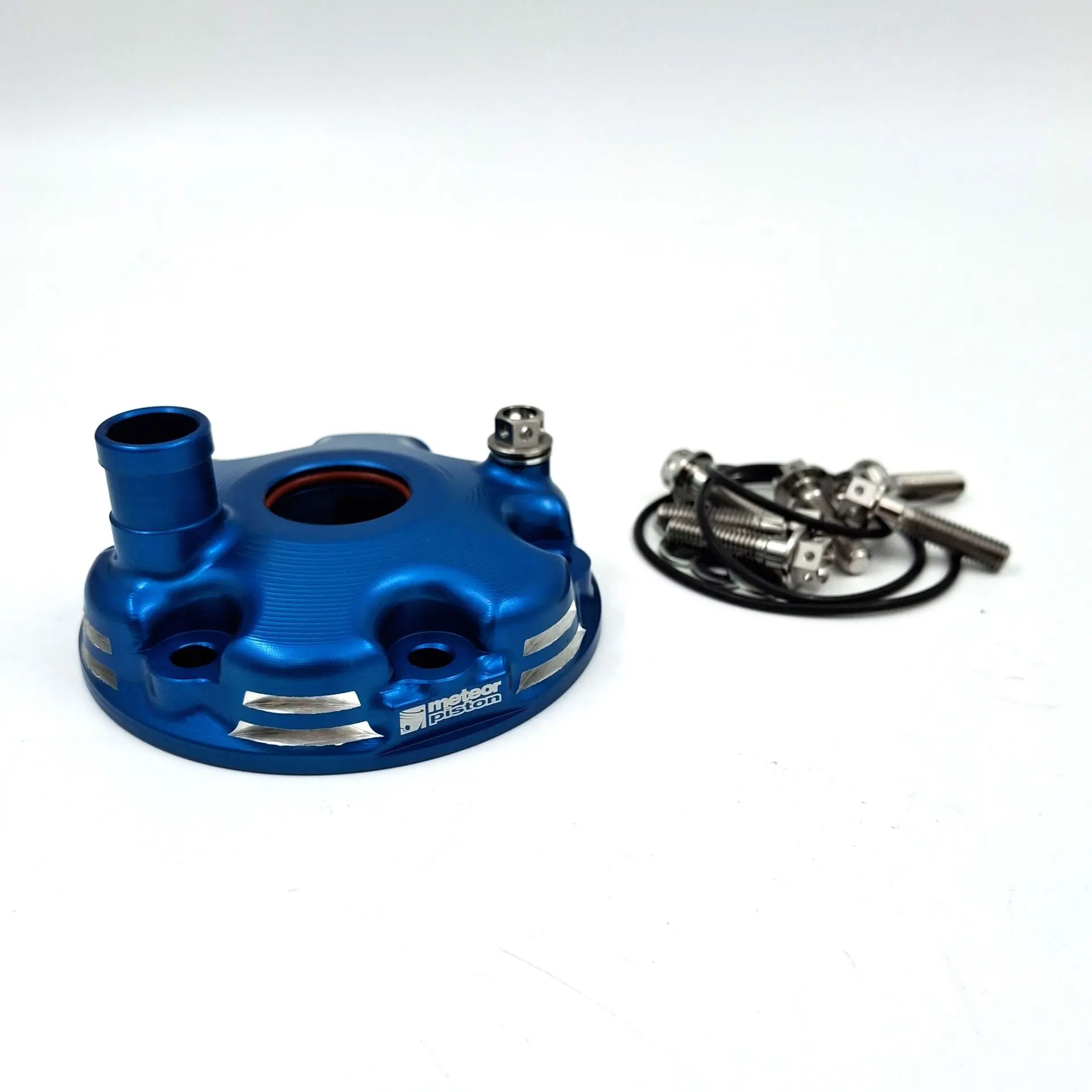

CYLINDER HEAD
Thermal efficiency and structural rigidity. Cylinder heads are engineered to optimize cooling and ensure maximum sealing of the thermal unit, even under prolonged stress. By eliminating critical temperature spikes, it guarantees unbeatable performance consistency, offering sharper engine responsiveness and extended durability of all internal components.
The cylinder head includes titanium screws, a technical choice that makes a real difference in strength, lightness, and consistent torque sealing.

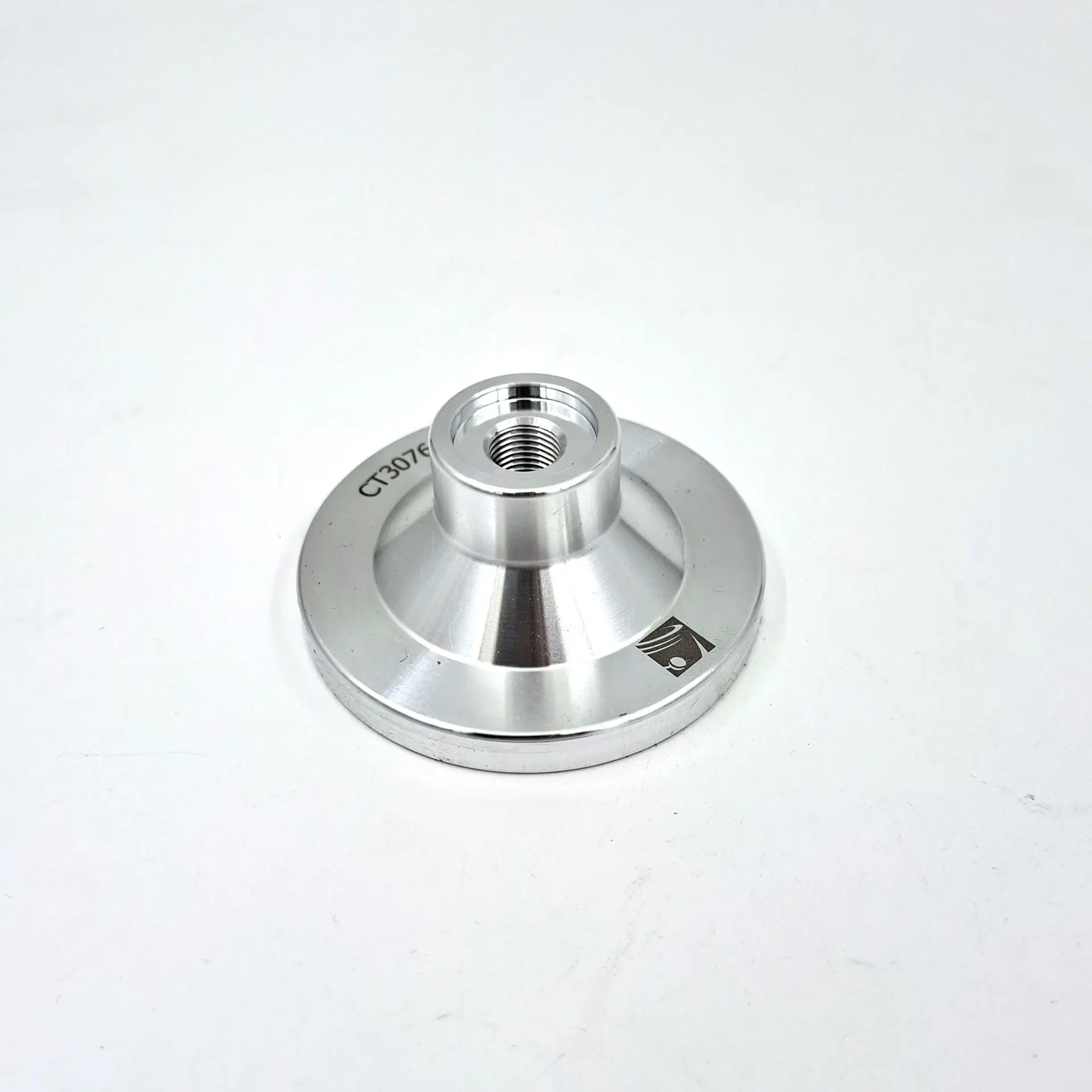

HEAD INSERT 12°
Redefine fluid dynamics: cylinder head inserts are the invisible architects of combustion.
Specifically engineered to work in perfect symbiosis with dedicated profile pistons, the exclusive 12° chamfer radically changes the rules of the game inside the combustion chamber. This specific geometry guides the air-fuel mixture by directing the flows in an extremely linear and progressive way; a smoother transition optimizes the squish effect, reduces scavenging lag, and drastically improves exhaust gas scavenging.
PISTON
Rewrite the rules of performance: Meteor Piston pistons are not just standard replacements, they are the true beating heart of a top-tier thermal unit, designed and engineered for riders and tuners who refuse to compromise.
Entirely developed in Italy, these gravity-die cast pistons deliver superior structural and thermal stability: the result is a lightning-fast throttle response and unbeatable performance consistency, lap after lap.
Each piston comes complete with premium-quality components and with the exclusive Oil-Dots coating. This advanced treatment reduces sliding friction, lowers operating temperatures and provides protection against thermal stress and wear.
Upgrade your ride
Experiencing the difference with the Meteor Piston kit is now easier than ever.
Engineered to unlock your engine's full potential and dominate the track, this kit combines superior performance with maximum durability. The configuration is entirely ready-to-fit: installation is quick and intuitive, coming complete with all necessary components and accessories. It is the perfect solution for both professional mechanics and riders who love DIY mechanical customization.
Choose Meteor Piston and take your riding experience to the next level.
Specifications
| SEL | A 46.94, B 46.95, C 46.96, D 46.97 |
| TIPO | PC |
