Sealing rings types
Group TBE

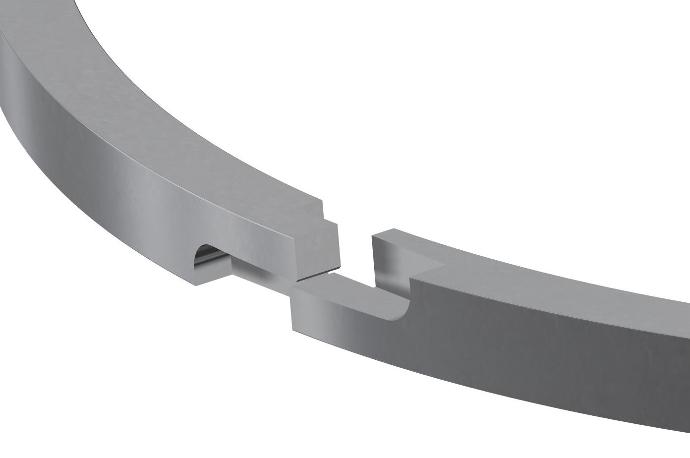

C1TBE
RECTANGULAR SEALING RING WITH EXTERNAL OVERLAPED JOINT

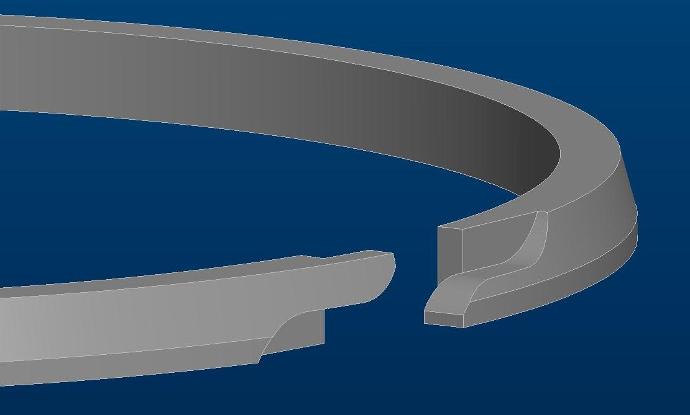

C2TBE
TAPER FACED SEALING RING WITH EXTERNAL OVERLAPED JOINT
Coating and treatments options
P
Mn Phosphate on all ring surface
Type Options
Here below the list of the different types of rings developed so far combining joint, machining profile and coating, according to the above mentioned legenda:
| Engine | Group | Type | Item Code | Description | ISOStd |
|---|---|---|---|---|---|
| SEALING | TBE | C1RTBE | RTBE | TAPER FACED SEALING RING WITH EXTERNAL OVERLAPPED JOINT AND PHOSPHATED | |
| SEALING | TBE | C1RTBEP | RTBE | TAPER FACED SEALING RING WITH EXTERNAL OVERLAPPED JOINT AND PHOSPHATED | |
| SEALING | TBE | C1TBE | 1TBE | SEALING RING WITH EXTERNAL OVERLAPPED JOINT WITH RADIUS ON OUTSIDE EDGES | |

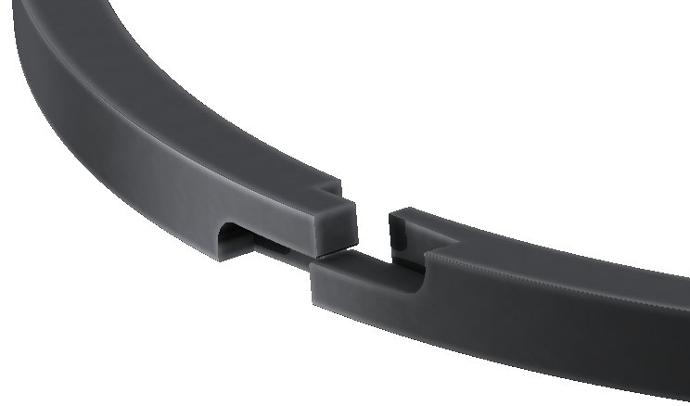

| SEALING | TBE | C1TBEP | TBEP | SEALING RING WITH EXTERNAL OVERLAPPED JOINT WITH RADIUS ON OUTSIDE EDGES AND PHOSPHATED | |
| COMPRESSOR | TBE | C2LTBEP | 2LTB | SEALING RING WITH EXTERNAL OVERLAPPED JOINT AND PHOSPHATED | |
| COMPRESSOR | TBE | C2TBEP | 2TBE | SEALING RING WITH EXTERNAL OVERLAPPED JOINT |
Almost 300 different types of rings produced by Caber
If you have any questions or a new ring to be developed do not hesitate to contact us.
