Sealing rings types
Group SH

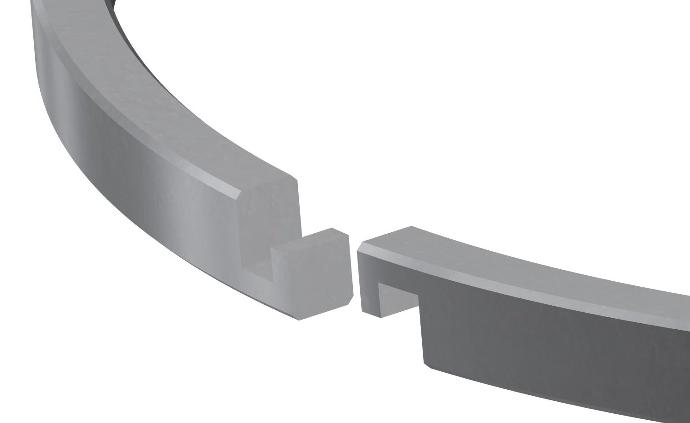

C1SH
SEALING RING WITH HOOK JOINT

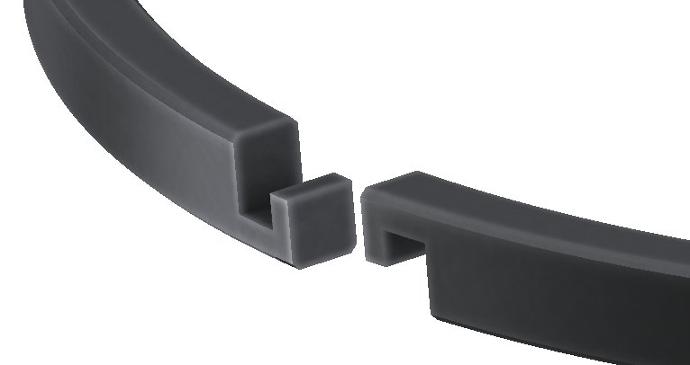

Coating and treatments options
P
Mn Phosphate on all ring surface
Type Options
Here below the list of the different types of rings developed so far combining joint, machining profile and coating, according to the above mentioned legenda:
| Engine | Group | Type | Item Code | Description | ISOStd |
|---|---|---|---|---|---|
| SEALING | SH | C1BSHP | BSHP | BARREL FACED SEALING RING WITH HOOK JOINT AND PHOSPHATED | |
| SEALING | SH | C1HISH | HISH | SEALING RING WITH HOOK JOINT WITH OUTSIDE AND INSIDE EDGES CHAMFERED | |
| SEALING | SH | C1HISHP | HISH | SEALING RING WITH HOOK JOINT WITH OUTSIDE AND INSIDE EDGES CHAMFERED AND PHOSPHATED | |
| SEALING | SH | C1HSH | 1HSH | SEALING RING WITH HOOK JOINT WITH OUTSIDE EDGES CHAMFERED | |
| SEALING | SH | C1HSHP | HSHP | SEALING RING WITH HOOK JOINT WITH OUTSIDE EDGES CHAMFERED AND PHOSPHATED | |
| SEALING | SH | C1ISH | 1ISH | SEALING RING WITH HOOK JOINT WITH INSIDE EDGES CHAMFERED | |
| SEALING | SH | C1ISHP | ISHP | SEALING RING WITH HOOK JOINT WITH OUTSIDE EDGES CHAMFERED AND PHOSPHATED | |
| SEALING | SH | C1SH | 01SH | SEALING RING WITH HOOK JOINT | |
| SEALING | SH | C1SHP | 1SHP | SEALING RING WITH HOOK JOINT AND PHOSPHATED | R |
| SEALING | SH | C1SHT | 1SHT | SEALING RING WITH HOOK JOINT… TBD |
Almost 300 different types of rings produced by Caber
If you have any questions or a new ring to be developed do not hesitate to contact us.
