4-stroke piston rings types
group S
Scraper rings shapes
S16
STRAIGHT FACED NAPIER PISTON RING WITH INTERNAL BEVELLED TOP SIDE
S26
TAPER FACED SCRAPER OIL CONTROL RING, WITH INTERNAL BEVELLED TOP SIDE
Coating and treatments options
P
Mn Phosphate on all ring surface
Type Options
Here below the list of the different types of rings developed so far combining joint, machining profile and coating, according to the above mentioned legenda:
| Engine | Group | Type | Item Code | Description | ISOStd |
|---|---|---|---|---|---|
| 4T | S | S01 | 5000 | STRAIGHT FACED SCRAPER PISTON RING | E |
| 4T | S | S01P | 50P0 | STRAIGHT FACED SCRAPER PISTON RING AND PHOSPHATED | |
| 4T | S | S02 | 5300 | TAPER FACED SCRAPER PISTON RING | EM |
| 4T | S | S02L | 53L0 | TAPER FACED SCRAPER PISTON RING LAPPED ON OUTSIDE DIAMETER | |
| 4T | S | S02LP | 53LP | TAPER FACED SCRAPER PISTON RING LAPPED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 4T | S | S02P | 53P0 | TAPER FACED SCRAPER PISTON RING AND PHOSPHATED | |

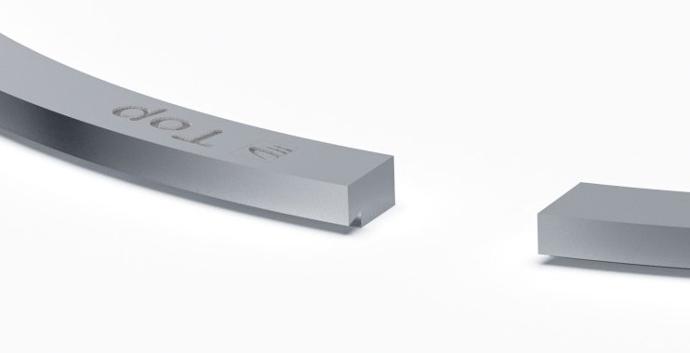

| 4T | S | S10 | 5100 | STRAIGHT FACED NAPIER PISTON RING | N |
| 4T | S | S10I | 51I0 | STRAIGHT FACED NAPIER PISTON RING WITH INSIDE EDGES CHAMFERED | |
| 4T | S | S10IP | 51IP | STRAIGHT FACED NAPIER PISTON RING WITH INSIDE EDGES CHAMFERED AND PHOSPHATED | |
| 4T | S | S10LP | 51LP | STRAIGHT FACED NAPIER PISTON RING, LAPPED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 4T | S | S10P | 51P0 | STRAIGHT FACED NAPIER PISTON RING PHOSPHATED | |

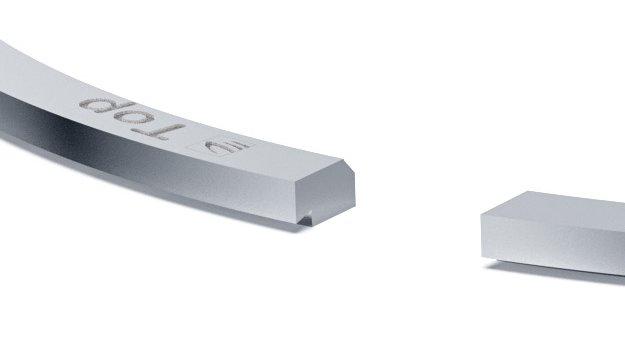

| 4T | S | S16 | 5600 | STRAIGHT FACED NAPIER PISTON RING WITH INTERNAL BEVELLED TOP SIDE | N-IF |
| 4T | S | S16P | 56P0 | STRAIGHT FACED NAPIER PISTON RING WITH INTERNAL BEVELLED TOP SIDE AND PHOSPHATED | |

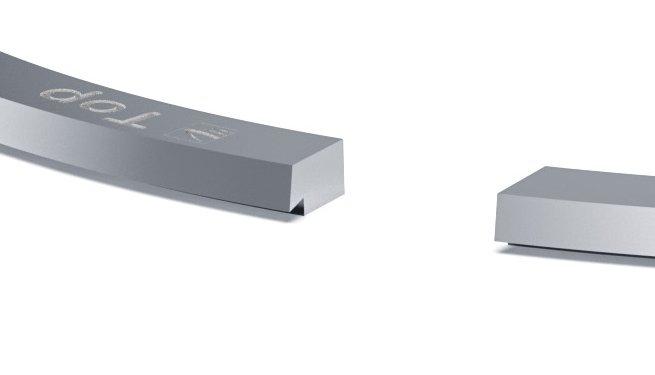

| 4T | S | S20 | 5200 | TAPER FACED NAPIER PISTON RING | NM |

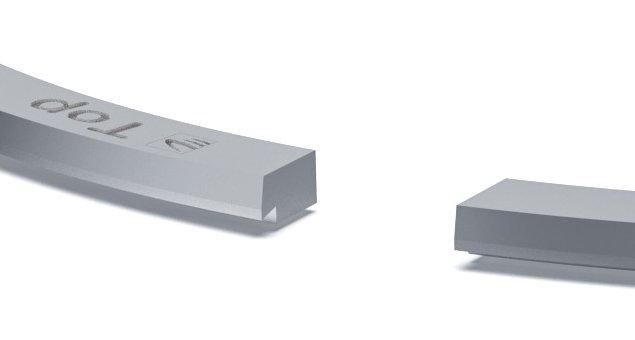

| 4T | S | S20L | 52L0 | TAPER FACED NAPIER PISTON RING CHROME LAPPED ON OUTSIDE DIAMETER | |
| 4T | S | S20LP | 52LP | TAPER FACED NAPIER PISTON RING CHROME LAPPED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 4T | S | S20P | 52P0 | TAPER FACED NAPIER SCRAPER RING PHOSPHATED | |
| 4T | S | S26LP | 526L | TAPER FACED NAPIER PISTON RING WITH INTERNAL BEVELLED TOP SIDE, LAPPED ON OUTSIDE DIAMETER AND PHOSPHATED |
Almost 300 different types of rings produced by Caber
If you have any questions or a new ring to be developed do not hesitate to contact us.
