2-stroke piston rings types

group L

Joints and shapes

L

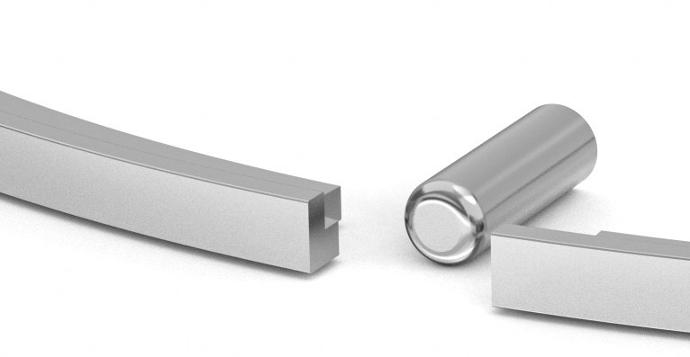

 L-SHAPED PISTON RING

Discover profile machining options

L3

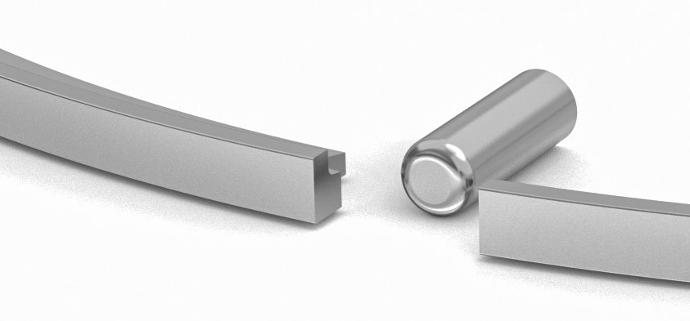

L-SHAPED PISTON RING, WITH INTERNAL HALF-KEYSTONE FACE

Discover profile machining options

H

Outside edges chamfered

Discover treatment and coating options

R

With radius on outside diameter

Discover treatment and coating options

Coating and treatments options

P

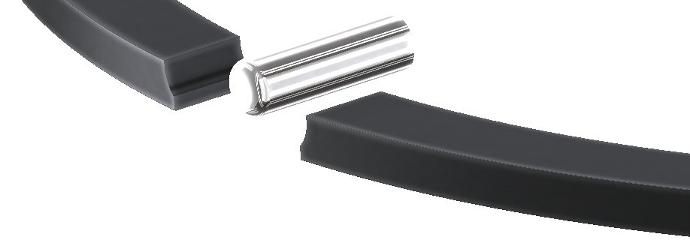

Mn Phosphate on all ring surface

K

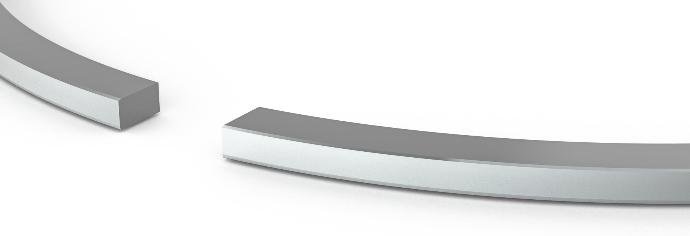

Chrome coating on outside diameter

Type Options

Here below the list of the different types of rings developed so far combining joint, machining profile and coating, according to the above mentioned legenda:

Engine Group Type Item Code Description ISOStd
2T L L 3100 L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH
2T L L3HBIP L3HB BARREL FACED L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH, WITH INTERNAL HALF-KEYSTONE FACE, WITH OUTSIDE EDGES CHAMFERED AND PHOSPHATED
2T L L3P 313P L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH, WITH INTERNAL HALF-KEYSTONE FACE AND PHOSPHATED
2T L LH 31H0 L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED
2T L LHBP 31HB BARREL FACED L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED
2T L LHLIP 31HI L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED, LAPPED ON OUTSIDE DIAMETER, WITH INTERNAL CHAMFER ON INTERNAL FACE EDGE AND PHOSPHATED
2T L LHLP 31HL L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED, LAPPED ON OUTSIDE DIAMETER AND PHOSPHATED
2T L LHP 31HP L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED
2T L LK 31K0 L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH CHROME COATED ON OUTSIDE DIAMETER
2T L LKB 31KB BARREL FACED L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH CHROME COATED ON OUTSIDE DIAMETER
2T L LKBP 31KB BARREL FACED L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED
2T L LKP 31KP L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED
2T L LP 31P0 L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH AND PHOSPHATED
2T L LRBP 31RB BARREL FACED L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH WITH RADIUS ON OUTSIDE EDGES AND PHOSPHATED
2T L LRP 31RP L-SHAPED PISTON RING JOINT WITH INTERNAL NOTCH WITH RADIUS ON OUTSIDE EDGES AND PHOSPHATED

Almost 300 different types of rings produced by Caber

If you have any questions or a new ring to be developed do not hesitate to contact us.
