2-strokes piston rings types
Group G
Joints and cross sections
G36
PISTON RING INTERNAL BEVELLED TOP SIDE JOINT WITH INTERNAL NOTCH
Coating and treatments options
P
Mn Phosphate on all ring surface
K
Chrome coating on outside diameter
All available combinations
Here below the list of the different types of rings developed so far combining joint, machining profile and coating, according to the above mentioned legenda:
| Engine | Group | Type | Item Code | Description | ISOStd |
|---|---|---|---|---|---|

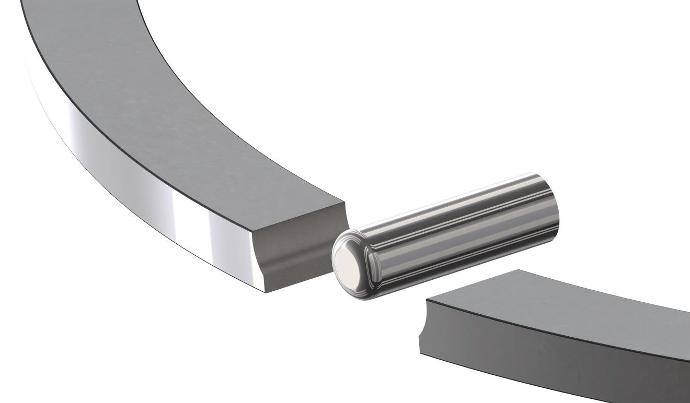

| 2T | G | G15 | 1500 | PISTON RING JOINT WITH SIDE NOTCH | R-NE |

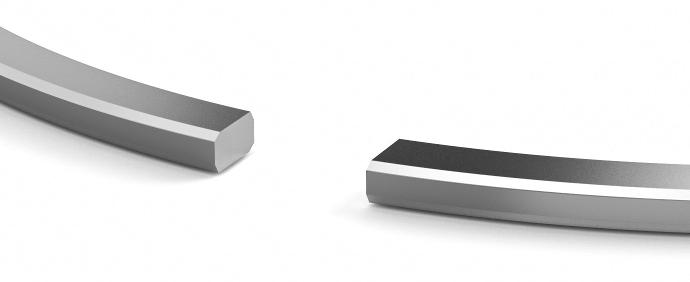

| 2T | G | G15H | 15H0 | PISTON RING JOINT WITH SIDE NOTCH WITH OUTSIDE EDGES CHAMFERED | R-KA-NE |
| 2T | G | G15HB | 15HB | BARREL FACED PISTON RING JOINT WITH SIDE NOTCH WITH OUTSIDE EDGES CHAMFERED | B-KA-NE |
| 2T | G | G15HBP | 15HB | BARREL FACED PISTON RING JOINT WITH SIDE NOTCH WITH OUTSIDE EDGES CHAMFERED AND PHOSPHATED | |
| 2T | G | G15HP | 15HP | PISTON RING JOINT WITH SIDE NOTCH WITH OUTSIDE EDGES CHAMFERED AND PHOSPHATED | |
| 2T | G | G15K | 15K0 | PISTON RING JOINT WITH SIDE NOTCH WITH CHROME COATED ON OUTSIDE DIAMETER | R-CR-NE |
| 2T | G | G15KBP | 15KB | BARREL FACED PISTON RING JOINT WITH SIDE NOTCH WITH CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G15KP | 15KP | PISTON RING JOINT WITH SIDE NOTCH WITH CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G15P | 15P0 | PISTON RING JOINT WITH SIDE NOTCH AND PHOSPHATED | |
| 2T | G | G15RBP | 15RB | BARREL FACED PISTON RING JOINT WITH SIDE NOTCH, WITH RADIUS ON OUTSIDE EDGES | |
| 2T | G | G17 | 1700 | TAPER FACED PISTON RING JOINT WITH SIDE NOTCH | |
| 2T | G | G17KP | 17KP | TAPER FACED PISTON RING JOINT WITH SIDE NOTCH, CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G18 | 1800 | HALF KEYSTONE PISTON RING JOINT WITH SIDE NOTCH | |
| 2T | G | G18H | 18H0 | HALF KEYSTONE PISTON RING JOINT WITH SIDE NOTCH WITH OUTSIDE EDGES CHAMFERED | HK-KA-NE |
| 2T | G | G18HBP | 18HB | BARREL FACED HALF KEYSTONE PISTON RING JOINT WITH SIDE NOTCH WITH OUTSIDE EDGES CHAMFERED AND PHOSPHATED | |
| 2T | G | G18HLP | 18HL | HALF KEYSTONE PISTON RING JOINT WITH SIDE NOTCH WITH OUTSIDE EDGES CHAMFERED LAPPED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G18HP | 18HP | HALF KEYSTONE PISTON RING JOINT WITH SIDE NOTCH WITH OUTSIDE EDGES CHAMFERED AND PHOSPHATED | |
| 2T | G | G18K | 18K0 | HALF KEYSTONE PISTON RING JOINT WITH SIDE NOTCH CHROME COATED ON OUTSIDE DIAMETER | HK-CR-NE |
| 2T | G | G18KBP | 18KB | BARREL FACED HALF KEYSTONE PISTON RING JOINT WITH SIDE NOTCH CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G18KP | 18KP | HALF KEYSTONE PISTON RING JOINT WITH SIDE NOTCH CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G25 | 2500 | 2-STROKE PISTON RING WITH BUTT JOINT | |
| 2T | G | G25H | 25H0 | 2-STROKE PISTON RING WITH BUTT JOINT AND OUTSIDE EDGES CHAMFERED | |
| 2T | G | G25K | 25K0 | 2-STROKE PISTON RING WITH BUTT JOINT AND CHROME COATED ON OUTSIDE DIAMETER | |
| 2T | G | G25RBP | 25RB | BARREL FACED 2-STROKE PISTON RING WITH BUTT JOINT WITH RADIUS ON OUTSIDE EDGES AND PHOSPHATED | |

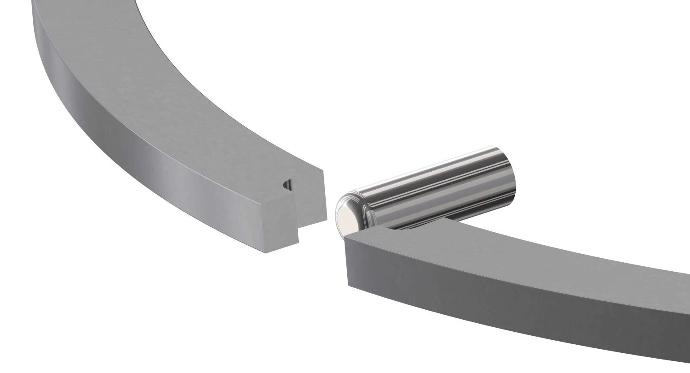

| 2T | G | G30 | 3000 | PISTON RING JOINT WITH INTERNAL NOTCH | R-NH |
| 2T | G | G30H | 30H0 | PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED | R-KA-NH |
| 2T | G | G30HB | 30HB | PISTON RING WITH OUTSIDE EDGES CHAMFERED, BARREL FACED AND JOINT WITH INTERNAL NOTCH | |
| 2T | G | G30HBP | 30HB | BARREL FACED PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED AND PHOSPHATED | |
| 2T | G | G30HLP | 30HL | PISTON RING JOINT WITH INTERNAL NOTCH, WITH OUTSIDE EDGES CHAMFERED, LAPPED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G30HP | 30HP | PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED AND PHOSPHATED | |
| 2T | G | G30K | 30K0 | PISTON RING JOINT WITH INTERNAL NOTCH AND CHROME COATED ON OUTSIDE DIAMETER | R-CR-NH |
| 2T | G | G30KB | 30KB | BARREL FACED PISTON RING JOINT WITH INTERNAL NOTCH AND CHROME COATED ON OUTSIDE DIAMETER | |
| 2T | G | G30KBIP | 30KB | BARREL FACED PISTON RING JOINT WITH INTERNAL NOTCH WITH INSIDE EDGES CHAMFERED, CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G30KBP | 30KB | BARREL FACED PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE DIAMETER CHROME COATED AND PHOSPHATED | |
| 2T | G | G30KI | 30KI | PISTON RING JOINT WITH INTERNAL NOTCH WITH INSIDE EDGES CHAMFERED AND CHROME COATED ON OUTSIDE DIAMETER | R-CR-NH-KI |
| 2T | G | G30KIP | 30KI | PISTON RING JOINT WITH INTERNAL NOTCH WITH INSIDE EDGES CHAMFERED, CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G30KP | 30KP | PISTON RING JOINT WITH INTERNAL NOTCH CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G30P | 30P0 | PISTON RING JOINT WITH INTERNAL NOTCH AND PHOSPHATED | |
| 2T | G | G30RBP | 30RB | BARREL FACED PISTON RING JOINT WITH INTERNAL NOTCH WITH RADIUS ON OUTSIDE EDGES AND PHOSPHATED | |
| 2T | G | G30RP | 30RP | PISTON RING JOINT WITH INTERNAL NOTCH WITH RADIUS ON OUTSIDE EDGES AND PHOSPHATED | |
| 2T | G | G33 | 3300 | HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH | |
| 2T | G | G33BP | 33BP | BARREL FACED HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH AND PHOSPHATED | |
| 2T | G | G33H | 33H0 | HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED | HK-KA-NH |
| 2T | G | G33HB | 33HB | BARREL FACED HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED | HKB-KA-NH |
| 2T | G | G33HBP | 33HB | BARREL FACED HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED AND PHOSPHATED | |
| 2T | G | G33HLP | 33HL | HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED, LAPPED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G33HP | 33HP | HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED AND PHOSPHATED | |
| 2T | G | G33K | 33K0 | HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE DIAMETER CHROME COATED | HK-CR-NH |
| 2T | G | G33KB | 33KB | BARREL FACED HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE DIAMETER CHROME COATED | |
| 2T | G | G33KBP | 33KB | BARREL FACED HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE DIAMETER CHROME COATED AND PHOSPHATED | HKB-CR-NH |
| 2T | G | G33KIBP | 33KI | HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH WITH INSIDE EDGES CHAMFERED CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G33KP | 33KP | HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G33RP | 33RP | HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH WITH RADIUS ON OUTSIDE EDGES AND PHOSPHATED | |
| 2T | G | G34 | 3400 | KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH | |
| 2T | G | G34H | 34H0 | KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED | K-KA-NH |
| 2T | G | G34HP | 34HP | KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH WITH OUTSIDE EDGES CHAMFERED AND PHOSPHATED | |
| 2T | G | G34K | 34K0 | KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH CHROME COATED ON OUTSIDE DIAMETER | K-CR-NM |
| 2T | G | G34KP | 34KP | KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G35K | 35K0 | 30° HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH CHROME COATED ON OUTSIDE DIAMETER | |
| 2T | G | G35KP | 35KP | 30° HALF KEYSTONE PISTON RING JOINT WITH INTERNAL NOTCH CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G36K | 36K0 | PISTON RING JOINT WITH INTERNAL NOTCH WITH INTERNAL BEVELLED TOP SIDE CHROME COATED ON OUTSIDE DIAMETER | R-CR-IF-NH |
| 2T | G | G36KBP | 36KB | BARREL FACED PISTON RING JOINT WITH INTERNAL NOTCH WITH INTERNAL BEVELLED TOP SIDE CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| 2T | G | G36KP | 36KP | PISTON RING JOINT WITH INTERNAL NOTCH WITH INTERNAL BEVELLED TOP SIDE CHROME COATED ON OUTSIDE DIAMETER AND PHOSPHATED |
Almost 300 different types of rings produced by Caber
If you have any questions or a new ring to be developed do not hesitate to contact us.
