Sealing rings types
Group TB
C1TB

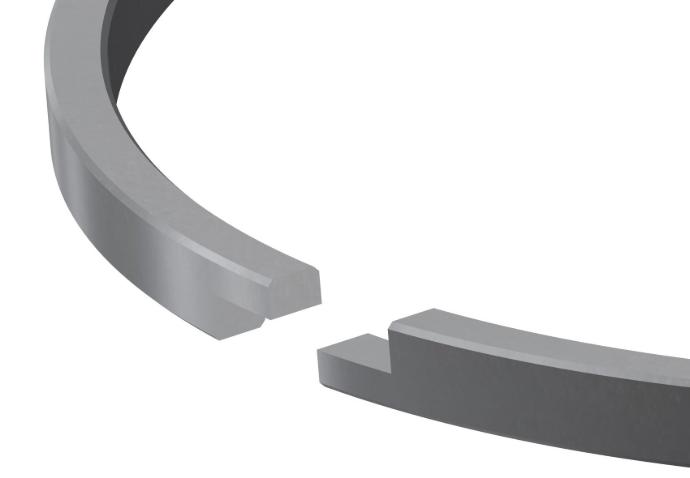

SEALING RING WITH OVERLAPED JOINT
Coating and treatments options
P
Mn Phosphate on all ring surface
Type Options
Here below the list of the different types of rings developed so far combining joint, machining profile and coating, according to the above mentioned legenda:
| Engine | Group | Type | Item Code | Description | ISOStd |
|---|---|---|---|---|---|
| SEALING | TB | C1BTBP | BPTB | BARREL FACED SEALING RING WITH OVERLAPPED JOINT AND PHOSPHATED | |
| SEALING | TB | C1HITB | HITB | SEALING RING WITH OVERLAPPED JOINT WITH OUTSIDE AND INSIDE EDGES CHAMFERED AND PHOSPHATED | |
| SEALING | TB | C1HITBR | TB | SEALING RING WITH OVERLAPPED JOINT + RADIUS ON JOINT GAPS, WITH OUTSIDE AND INSIDE EDGES CHAMFERED AND PHOSPHATED | |
| SEALING | TB | C1HTB | 1HTB | SEALING RING WITH OVERLAPPED JOINT AND OUTSIDE EDGES CHAMFERED | |
| SEALING | TB | C1HTBP | 1HTB | SEALING RING WITH OVERLAPPED JOINT AND OUTSIDE EDGES CHAMFERED AND PHOSPHATED | |
| SEALING | TB | C1ITB | 1ITB | SEALING RING WITH OVERLAPPED JOINT AND INSIDE EDGES CHAMFERED | |
| SEALING | TB | C1ITBP | 1ITB | SEALING RING WITH OVERLAPPED JOINT WITH INSIDE EDGES CHAMFERED AND PHOSPHATED | |
| SEALING | TB | C1TB | 01TB | SEALING RING WITH OVERLAPPED JOINT | |
| SEALING | TB | C1TBLP | 1TBL | SEALING RING WITH OVERLAPPED JOINT, LAPPED ON OUTSIDE DIAMETER AND PHOSPHATED | |
| SEALING | TB | C1TBP | 1TBP | SEALING RING WITH OVERLAPPED JOINT AND PHOSPHATED |
Almost 300 different types of rings produced by Caber
If you have any questions or a new ring to be developed do not hesitate to contact us.
